CLEANROOM PARTITIONS

Share Your Requirements

Rclean Metal is a premier manufacturer of fire doors, providing a wide range of products engineered for versatile use across diverse environments.

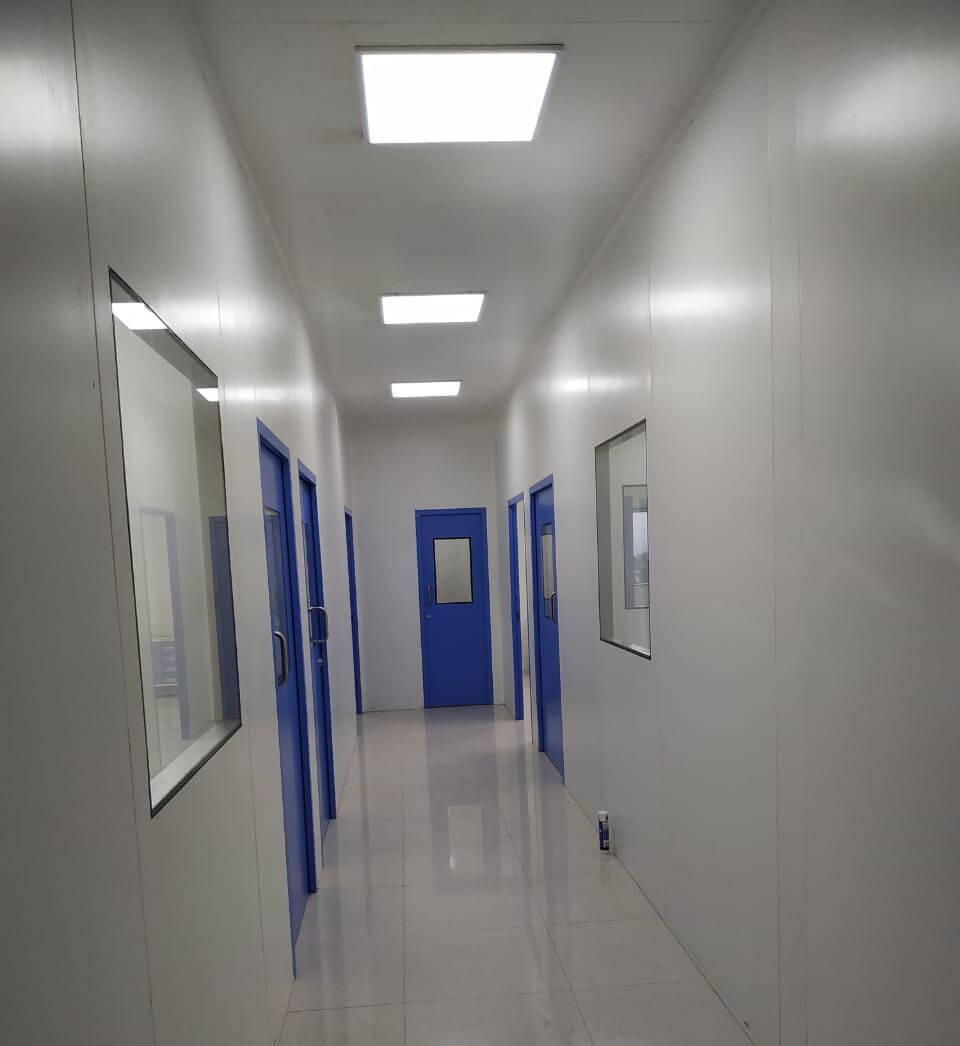

    Cleanroom Partitions

    rclean modular partition walls are fabricated using minimum 0.8/1mm gpsp sheet / stainless steel sheet with zinc coating between 90-120gsm. they are bonded with polyurethane foam or honeycomb kraft paper core or high density glass wool for maximum strength & rigidity.

    rclean partition walls have been installed successfully in many clean rooms in india and meets the requirement of most advanced electronic manufacturing, food facility, laboratories to healthcare facilities.

    rclean offers a complete range of partition walls & ceiling systems complying with technical specifications of controlled environment rooms. both ceiling & partitions are forming a part of aseptic environment in compliance with regulatory validation procedures.

    Cleanroom Panels

    clean room wall panels

    HPL clean room panels

    stainless steel clean room panels

    aluminum framed clean room panels

    modular clean room panels

    progressive clean room panel

    non progressive clean room panel

    OT hospital clean room panel

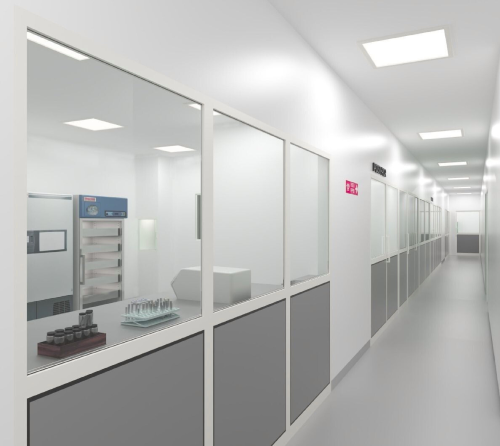

    Cleanroom Wall Partition

    modular clean room partition

    clean room glass partition

    rockwool & honeycomb insulation

    puf insulation panels

    double glazed vision panels

    double glazed view panel

    clean room glass wall partition

    polyurethane sandwich panels

    lab furniture

    We'd love to hear from you!

    We’re here to assist you in finding the right products and pricing tailored to your business needs.

    Highlights of Our Partitions

    All our Sandwich Panels / Partitions are prefabricated with cutouts. conduits and with factory fitted Vision Panel which is supplied for ready Installation at the site.

    All panels are insulated with Polyurethane Foam / Rock Wool insulation and as per customers requirement.

    Modular inbuilt risers of different thicknesses are made with required perforated SS-304 / GPSP Powder Coated Riser Grills.

    Advantages

    Demountable/Relocatable (Facility can be dismantled and shifted easily without damage or loss of modules or components).

    Modular and Light Weight Construction.

    Painting and Maintenance Free.

    Sheet Metal and Aluminium Profiles with Flush & Coved Powder Coated Panels does not allow Micro-organisms growth.

    Easy to Clean & Maintain.

    Operation Flexibility and Durability.

    Colour Choice as per RAL series.

    Panel Width: Max 1200mm / Customized, as standard. Panel thickness ranges from 25 mm to 150 mm
    Panel Height: Up to 3700mm with provision to have stacked panels for higher-level applications
    Base Detail: Raised / C-Type Base
    Infill Material: Rock Wool & Polyurethane Foam
    Surface Finish: Pure Polyester Powder coated as per RAL colours, SS Finish (matt/mirror finish)
    Glazing: Double flush glazing with 5mm toughened glass having a ceramic border on both sides within a stainless steel framing
    Air Leakage: Silicon Sealant for sealed application

    Know more about Cleanroom Partitions
