Rclean Metal is a premier manufacturer of fire doors, providing a wide range of products engineered for versatile use across diverse environments.

Fire Rated Doors

Built to protect lives during fire-related emergencies, RCLEAN metal fire doors are designed with fire resistance levels ranging from 30 minutes up to 2 hours, ensuring critical time for safe evacuation. These door sets are available with multiple options, including glazing, fire-resistant self-closing louvers, single or double configurations, and emergency exit solutions. Certified by CBRI (Roorkee), RCLEAN metal fire doors not only integrate seamlessly with existing passive fire-fighting systems but also enhance overall safety, security, and performance.

Rclean Metal specializes in premium Fire Doors designed to contain fire and safeguard lives in commercial and industrial settings. Tested and certified to leading Indian standards (BS 476 & IS: 3614), our doors provide fire resistance ratings of 60, 90, and 120 minutes, serving as a critical component of passive fire protection.

Our doors are constructed from galvanized or stainless steel, insulated with Rockwool, and finished with a smooth polyester powder coating. They come equipped with single-glass panels and premium commercial hardware, including SS 304 handles and hinges, door closers, panic bars, and PHT double-door locks.

Fire Rated Door Construction Details

ASPERIS:3614 PART LI&BS:476 PART 22

RCLEAN metal fire rated doors comply with IS:3614 Part I and BS:476 Part 22 standards. These fire-resistive door assemblies, complete with frame and hardware, are designed to provide certified fire protection for critical applications. Each door is constructed using two layers of galvanized or stainless steel sheets with a core of fire-resistant insulation materials such as honeycomb, ceramic wool, or rock wool. Steel reinforcements are integrated to ensure structural stability and long-term integrity. All doors are pre-engineered at our facility to accommodate pre-selected hardware, ensuring precision and reliability. They are delivered along with hardware from approved or customer-specified brands, offering complete, ready-to-install solutions.

Fire Door Specification

DOOR FRAME	1.2 / 1.6 / 2.0 MM GL SHEET
DOOR LEAF	0.8 / 1.0 / 1.2 / 1.6 MM GI SHEET
DOOR THICKNESS	46 MM / 40 MM
INFILL	HONEYCOMB / ROCKWOOL (96KG / M3)
VISION PANEL	FIRE RATED GLASS

Fire Door Accessories

EMERGENCY EXIT	PANIC BAR
STANDARD	MORTISE DEAD LOCK
HINGES	SS BUT HINGES
DOOR CLOSER	HEAVY DUTY FIRE RATED
FINISH	POWDER COATED

Temperature Rise

Single Leaf Door

fire protection rating upto 2 hours

CORE TYPE	CERAMIC FIBER
TEMP.RISE RATING	450 DEG.F
MAX.FRAME SIZE	(W X H) 1200 X 2261MM
MAX. DOOR SIZE	(W X H) 1100 X 2200MM
TYPE OF OPENING	FIRESINGLE SWINGING DOOR RATED GLASS

Features:

Double Leaf Door

fire protection rating upto 2 hours

CORE TYPE	CERAMIC FIBER
TEMP.RISE RATING	450 DEG.F
MAX.FRAME SIZE	(W X H) 2313 X 2269MM
MAX. DOOR SIZE	(W X H) 1100 X 2200MM
TYPE OF OPENING	DOOR SWINGING IN PAIRS

Features:

Non Temperature Rise

Single Leaf Door

fire protection rating upto 2 hours

CORE TYPE	HONEY COMB
TEMP.RISE RATING	N/A
MAX.FRAME SIZE	(W X H) 1200 X 2261MM
MAX. DOOR SIZE	(W X H) 1100 X 2200MM
TYPE OF OPENING	SINGLE SWINGING DOOR

Features:

Double Leaf Door

fire protection rating upto 2 hours

CORE TYPE	HONEY COMB
TEMP.RISE RATING	N/A
MAX.FRAME SIZE	(W X H) 2313 X 2269MM
MAX. DOOR SIZE	(W X H) 2 X 1100 X 2200MM
TYPE OF OPENING	DOOR SWINGING IN PAIRS

Features:

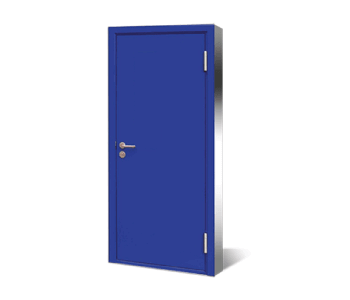

Air Leakage & Temperature Rise

Single Leaf Door

fire protection rating upto 3 hours

CORE TYPE	CERAMIC FIBER
TEMP.RISE RATING	450 DEG.F
AIR LEAKAGE	ANSI/UL 1784
MAX.FRAME SIZE	(W X H) 1200 X 2261MM
MAX. DOOR SIZE	(W X H) 1100 X 2200MM
TYPE OF OPENING	SINGLE SWINGING DOOR

Features:

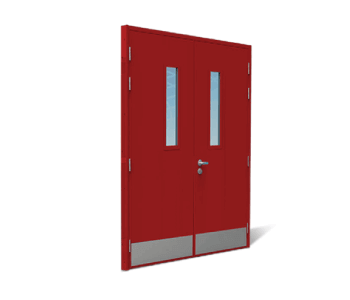

Double Leaf Door

fire protection rating upto 3 hours

CORE TYPE	CERAMIC FIBER
TEMP.RISE RATING	450 DEG.F
AIR LEAKAGE	ANSI/UL 1784
MAX.FRAME SIZE	(W X H) 1200 X 2261MM
MAX. DOOR SIZE	(W X H) 1100 X 2200MM
TYPE OF OPENING	DOOR SWINGING IN PAIRS

Features:
